Page 1030
Bille de manutention à socle
|
- Monture en acier embouti ou en inox embouti
- Bille en acier, en inox ou en nylon reposant sur une couronne de billes
Fixation dans un logement Attention la charge est plus faible si la bille est utilisée comme une roulette (bille en bas)
|
|
Survoler les icônes pour obtenir leur signification
|

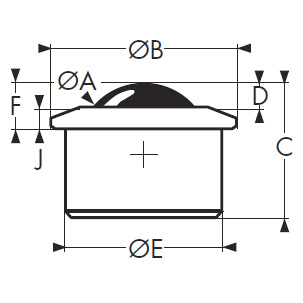

Code CC |
Bille |
Carter |
A |
B |
C |
D |
E |
F |
J |
 |
 |
Série 60 |
acier |
acier |
15 |
31 |
21 |
3,2 |
24 |
9,5 |
2,8 |
60 |
30 |
3635 |
inox |
inox |
15 |
31 |
21 |
3,2 |
24 |
9,5 |
2,8 |
38 |
19 |
5362 |
nylon |
acier |
15 |
31 |
21 |
3,2 |
24 |
9,5 |
2,8 |
10 |
5 |
0225 |
inox |
acier |
15 |
31 |
21 |
3,2 |
24 |
9,5 |
2,8 |
60 |
30 |
- |
acier |
acier |
22 |
45 |
30 |
4,3 |
36 |
9,8 |
2,8 |
160 |
80 |
5190 |
inox |
inox |
22 |
45 |
30 |
4,3 |
36 |
9,8 |
2,8 |
100 |
50 |
5363 |
nylon |
acier |
22 |
45 |
30 |
4,3 |
36 |
9,8 |
2,8 |
20 |
10 |
- |
inox |
acier |
22 |
45 |
30 |
4,3 |
36 |
9,8 |
2,8 |
160 |
80 |
- |
acier |
acier |
30 |
55 |
37 |
5,5 |
45 |
13,8 |
4 |
300 |
150 |
2233 |
inox |
inox |
30 |
55 |
37 |
5,5 |
45 |
13,8 |
4 |
200 |
100 |
- |
nylon |
acier |
30 |
55 |
37 |
5,5 |
45 |
13,8 |
4 |
25 |
12 |
- |
inox |
acier |
30 |
55 |
37 |
5,5 |
45 |
13,8 |
4 |
300 |
150 |
- |
acier |
acier |
45 |
75 |
53,5 |
9 |
62 |
19 |
4 |
610 |
300 |
- |
inox |
inox |
45 |
75 |
53,5 |
9 |
62 |
19 |
4 |
250 |
125 |
- |
inox |
acier |
45 |
75 |
53,5 |
9 |
62 |
19 |
4 |
610 |
300 |
- |
|
|
|
Les codes CC en rouge sont disponibles au magasin
